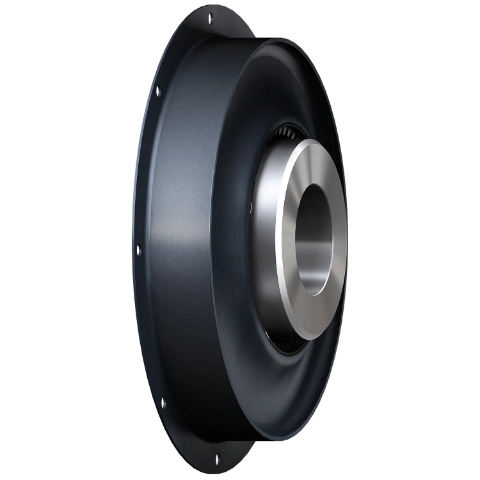

Product image SINULASTIC B highly flexible flange couplingen innen pluggable disk coupling

SINULASTIC® B

0 - 22,000 Nm / highly flexible flange coupling with gear coupling

In combination with the renowned BoWex inner hub the SINULASTIC B as an all-rounder of the overall series is formed.

The so-called BoWex hub defines a pluggable connection resistant to high loads as well as beneficial adaptations on the driven side up to long driving shaft systems owing to the potentials for particularly high displacements.

The hub and connection variants of BoWex-ELASTIC are fully compatible with the elastomer elements of this series, for example press-fit connections, feather key connections, splines acc. to DIN, SAE or ANSI as well as the clamping hub D design.

Features

  • highly flexible flange coupling with SAE and special dimensions

  • damping torsional vibrations

  • compensating for high misalignment

  • elastomer element available in various qualities

  • Elastomer element available in different materials: natural rubber (NR), synthetic rubber (EPDM), silicone rubber (SI)
