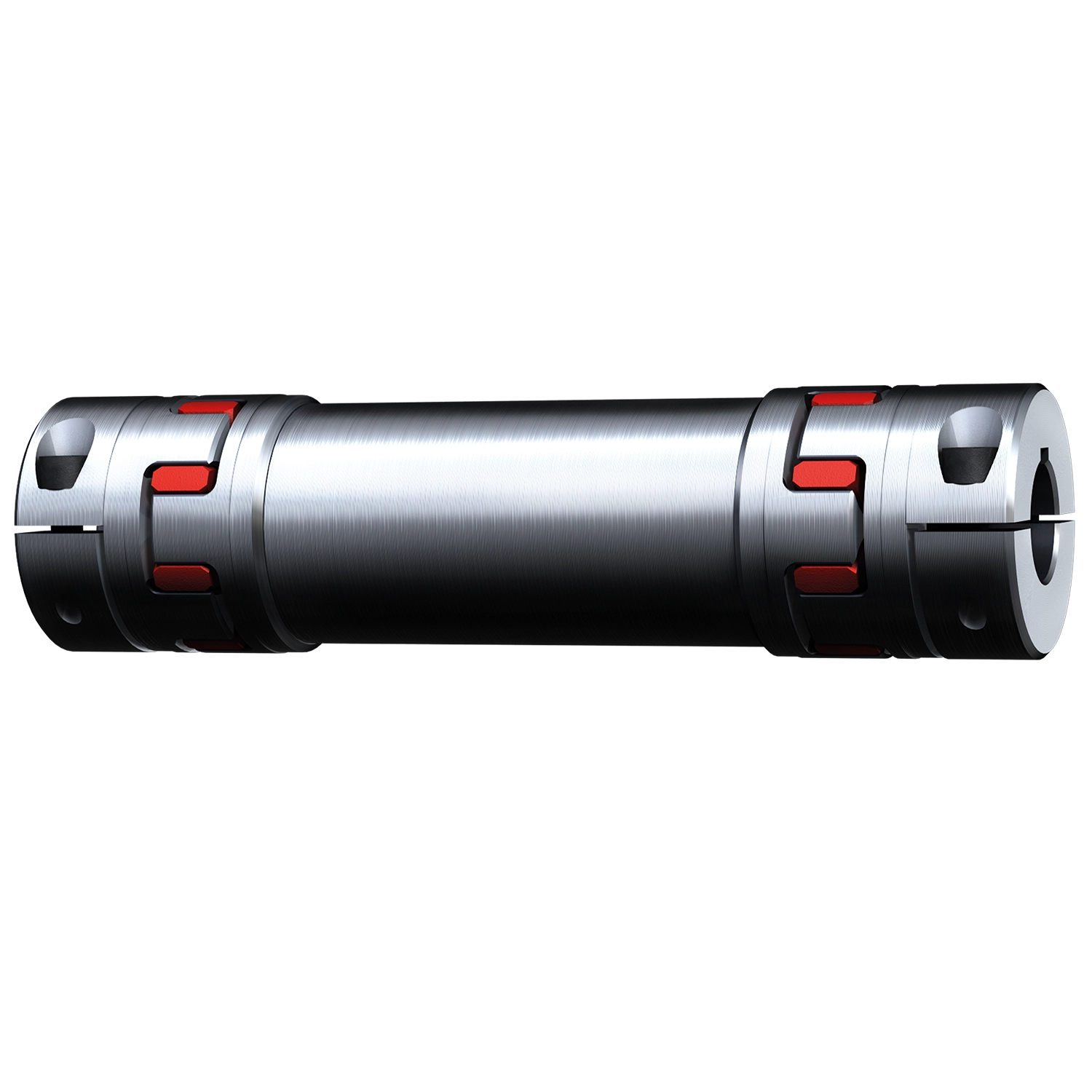

The double-cardanic ROTEX GS ZR3 is an intermediate shaft coupling (cardan shaft) with an intermediate pipe made of aluminium variable in length.
It is provided with half shell clamping hubs on both sides and can thus be mounted radially without displacing driving and driven components. The intermediate shaft of our cardan shaft is variable in length and allows for transmitting the torque over a large axial distance. Our range of half shell intermediate shaft couplings includes both frictionally engaged connections without feather keyway and positive-locking connections with feather keyway.
Features
intermediate shaft coupling / cardan shaft with aluminium pipe bonded
easy radial assembly of coupling by split coupling halves (half shells)
replacing the spider without displacing driving and driven side
lengths depend on speed and size, up to 4 metres can be realized without intermediate bearing
low mass moment of inertia by use of aluminium
Product Details
CAD drawings
Find 2D CAD drawings for download here.
You need 3D drawings instead? Then please visit our 3D CAD library.
