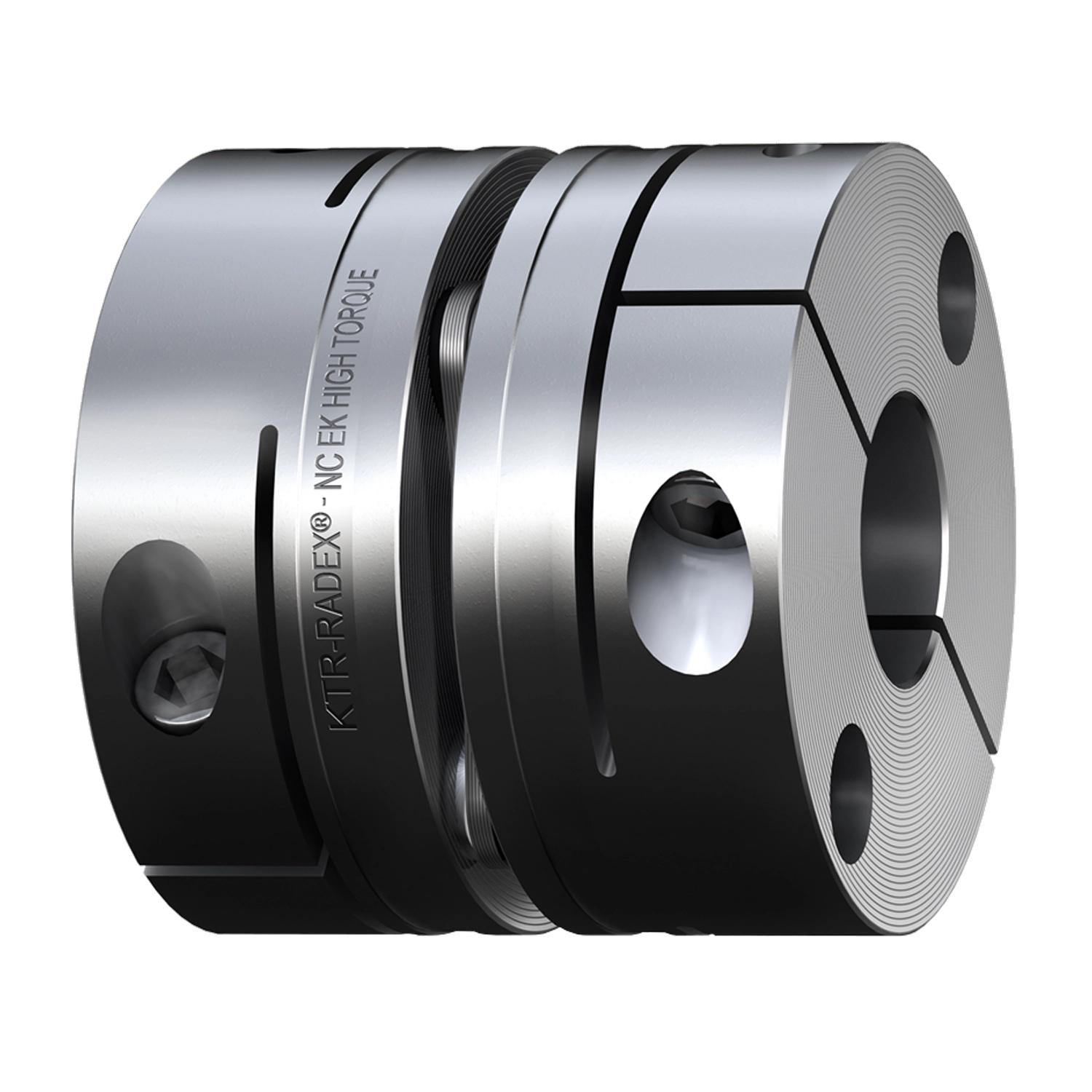

Servo laminae coupling with clamping hubs:RADEX-NC EK with clamping hubs is a single-cardanic standard series. The clamping hubs make the servo laminae coupling easy to assemble. The hubs are fastened to the shaft by tightening one single clamping screw eccentrically positioned. Here both frictionally engaged connections without feather keyway and positive-locking connections with feather keyway are available.
Servo laminae coupling with clamping ring hub:RADEX-NC EK with clamping ring hub is a single-cardanic series for high speeds.The two-part, rotationally symmetric taper hubs ensure smooth running along with a safe, frictionally engaged shaft-hub-connection even with high speeds.
Features
backlash-free servo laminae coupling
maintenance-free
max. ambient temperatures of +200 °C
torsionally stiff
single-cardanic coupling design
Product Details
CAD drawings
Find 2D CAD drawings for download here.
You need 3D drawings instead? Then please visit our 3D CAD library.
