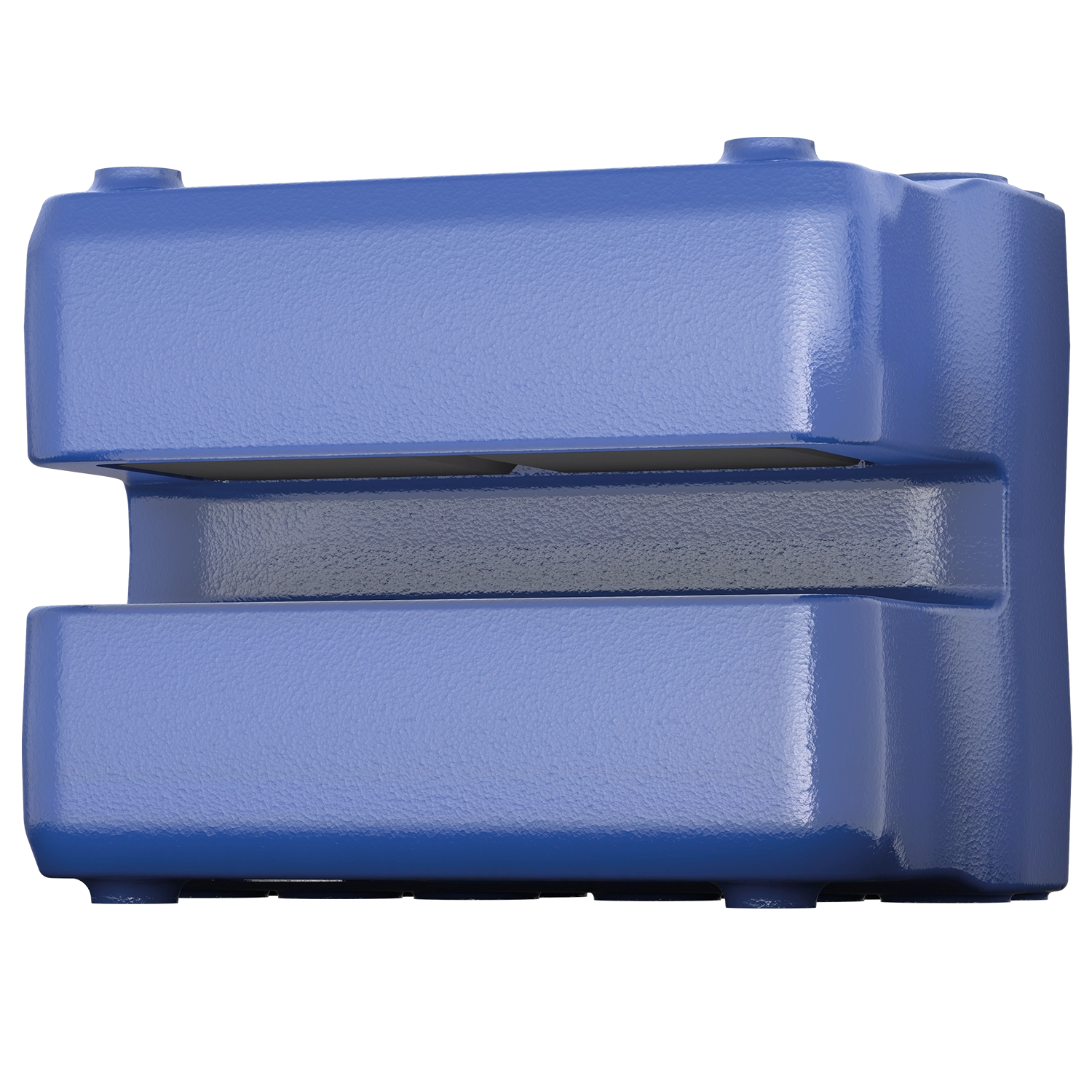

Product image KTR-STOP YAW S yaw brakes hydraulic brake systems


up to 106 kN / YAW brake

Holding brake for rotary drives

The KTR-STOP YAW S is a yaw brake that us usually used as a holding brake for rotary drives.

Version trimmed to the mounting space primarily used as a holding brake on rotary drives (e.g. swivel head on the excavator). In the version with retraction springs the size can be used as a service brake, too.


  • YAW brake

  • applicable as a holding brake or service brake

  • Clamping forces up to 106 kN

  • high power density

  • low maintenance effort

Product Details

CAD drawings

Find 2D CAD drawings for download here.
You need 3D drawings instead? Then please visit our 3D CAD library.

to the 3D-SpaceCenter
