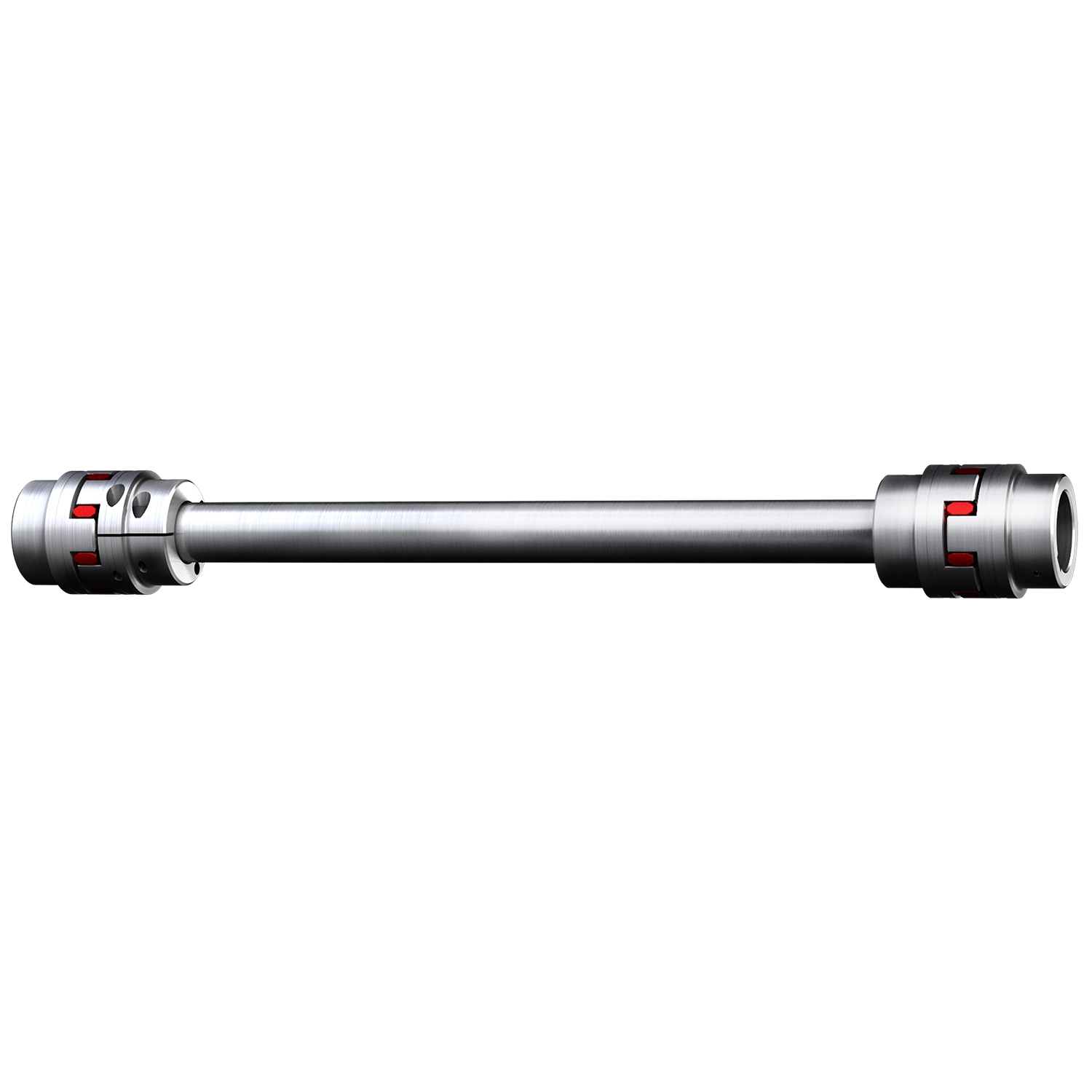

Product image ROTEX ZR Intermediate shaft program

ROTEX® ZR

0 - 1,920 Nm / torsionally flexible half shell coupling with intermediate shaft

The torsionally flexible jaw coupling ROTEX ZR is an half shell coupling (coupling with split hub) with intermediate shaft for bridging large shaft distances.

Couplings with split hubs are also referred to as drop-out center design couplings, half-shell couplings, clamping coupling or elastomer couplings with split clamping hubs.

The intermediate shaft coupling ROTEX ZR allows for bridging large shaft distances. Its half shell clamping hubs allow for radial assembly/disassembly (drop-out center design coupling). Due to its double-cardanic arrangement the intermediate shaft coupling is able to offset large displacements.

Features

  • double-cardanic jaw coupling with half shells (half shell coupling) and intermediate shaft (cardan shaft)

  • for bridging large shaft distances

  • good damping properties due to double arrangement of spiders

  • intermediate pipe radially dismountable with flexible bearing in the GS spider

  • compensating for large displacements due to double-cardanic design

Product Details

CAD drawings

Find 2D CAD drawings for download here.
You need 3D drawings instead? Then please visit our 3D CAD library.

to the 3D-SpaceCenter
