ROTEX® taper clamping sleeve

0 - 12,500 Nm / torsionally flexible jaw coupling

Jaw coupling can be combined with taper clamping sleeves

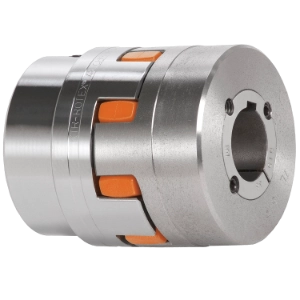

The torsionally flexible jaw coupling ROTEX for taper clamping sleeve is an elastomer coupling that can be combined with various types of taper clamping sleeves.

The compact design of this elastomer coupling in combination with the slide fit facilitates the assembly and axial alignment of the flexible shaft coupling.

The clamping screws to be used additionally secure the friction connection by a positive-locking fit.The torsionally flexible jaw coupling ROTEX for taper clamping sleeve is an elastomer coupling that can be combined with various types of taper clamping sleeves.
The compact design of this elastomer coupling in combination with the slide fit facilitates the assembly and axial alignment of the flexible shaft coupling.
The clamping screws to be used additionally secure the friction connection by a positive-locking fit.

Features

flexible jaw coupling for combining with taper clamping sleeves / taperlock clamping sleeves
slide fit facilitates axial alignment of the coupling
compact design
additional protection by positive-locking fit, each half of the clamping screws being in the coupling hub and taper clamping sleeve
complying with ATEX (acc. to EU directive 2014/34/EU)

Product Details

Specifications for: ROTEX® taper clamping sleeve

Further information and specifications can be found in our online catalogue.

To the online catalog

Specifications for ROTEX® taper clamping sleeve

Downloads

CAD drawings

Find 2D CAD drawings for download here.
You need 3D drawings instead? Then please visit our 3D CAD library.

to the 3D-SpaceCenter
