ROTEX® BFN

0 - 35,000 Nm / coupling as a flange type

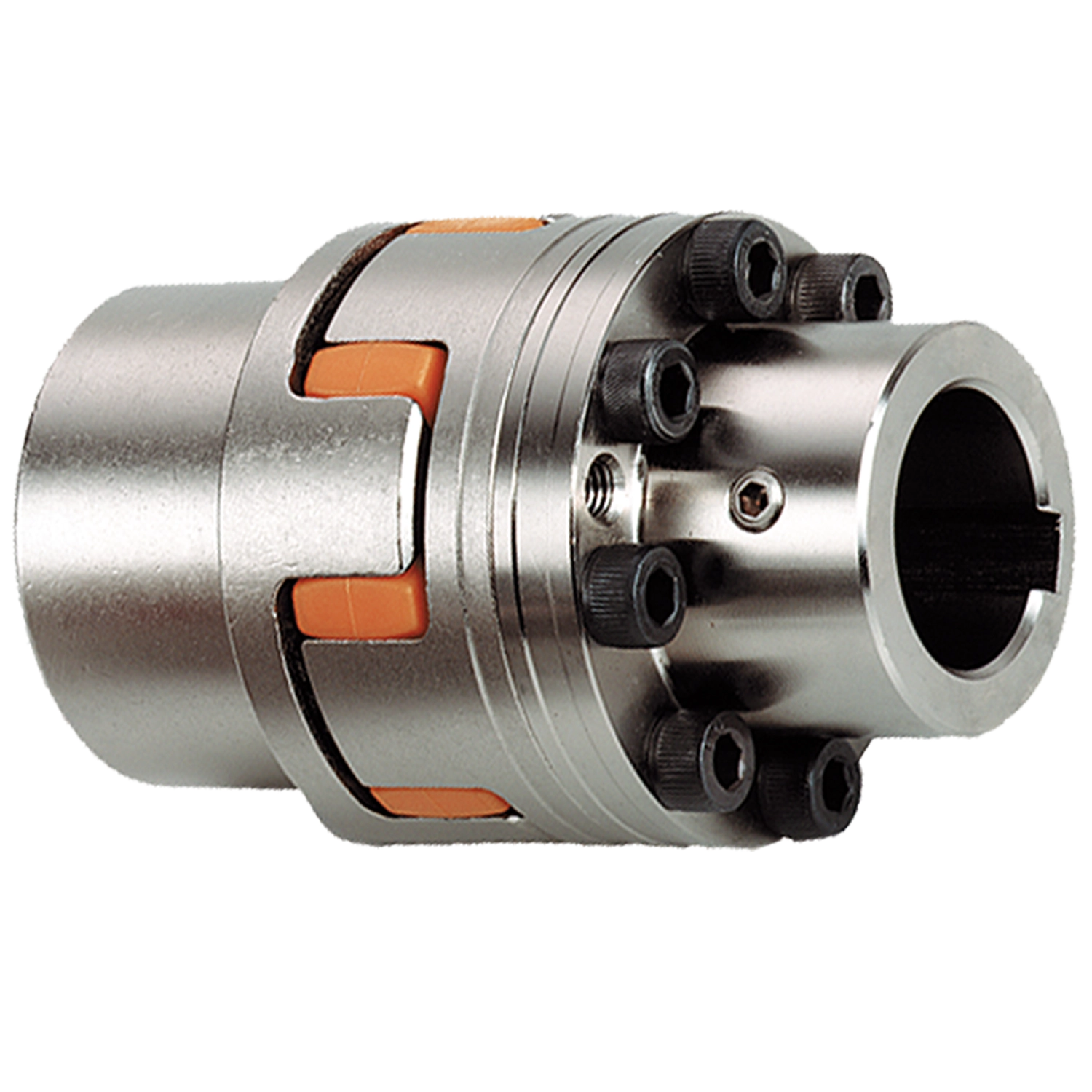

ROTEX BFN is a torsionally flexible elastomer coupling as a flange type (flange coupling) and particularly suitable for applications in heavy engineering.

The BFN design of the ROTEX elastomer coupling is characterized by the flange type allowing for radial assembly and disassembly of the shaft coupling or the elastomer without displacing the driving or driven side.

The flange hub 4N of the torsionally jaw coupling as a flange type ROTEX BFN is made of steel and the driving flange 3Na is made of GJS.

Features

fail-safe jaw couplings
low inertia
complying with ATEX (acc. to EU directive 2014/34/EU)
complying with UKEX (acc. to UKEX directive SI 2016:1107)
damping vibrations

Product Details


Size	Component 4N max. finish bore D1	Dimensions [mm]											Cap screws DIN EN ISO 4762 - 12.9
Size	Component 4N max. finish bore D1	DH	DN2	D4	DI1	DBSE	L	L1, L2	L5	E	B1	S	MxLM	Z	Pitch	T_A [Nm]
24	27	55	55	45	27	33	86	30	30,5	18	14	2	M5x16	8	8x45°	10
28	30	65	42	54	30	39	100	35	35,5	20	15	2,5	M6x20	8	8x45°	17
38	38	80	52	66	38	43	124	45	45,5	24	18	3	M8x22	8	8x45°	41
42	45	95	62	80	46	48	138	50	51	26	20	3	M8x25	12	16x22,5°	41
48	52	105	70	90	51	50	152	56	57	28	21	3,5	M8x25	12	16x22,5°	41
55	60	120	80	102	60	60	176	65	66	30	22	4	M10x30	8	8x45°	83
65	70	135	94	116	68	65	201	75	76	35	26	4,5	M10x30	12	16x22,5°	83
75	80	160	108	136	80	75	229	85	86,5	40	30	5	M12x40	15	20x18°	120
90	105	200	142	172	100	82	265	100	101,5	45	34	5,5	M16x40	15	20x18°	295
100	115	225	158	195	113	97	295	110	111,5	50	38	6	M16x50	15	20x18°	295
110	130	255	178	218	127	103	321	120	122	55	42	6,5	M20x50	15	20x18°	580
125	150	290	206	252	147	116	370	140	142	60	46	7	M20x60	15	20x18°	580
140	170	320	235	282	165	128	409	155	157,5	65	50	7,5	M20x60	15	20x18°	580
160	200	370	270	325	190	146	463	175	177,5	75	57	9	M24x70	15	20x18°	1000
180	230	420	315	375	220	159	515	195	198	85	64	10,5	M24x80	18	24x15°	1000

Downloads

CAD drawings

Find 2D CAD drawings for download here.
You need 3D drawings instead? Then please visit our 3D CAD library.

to the 3D-SpaceCenter
