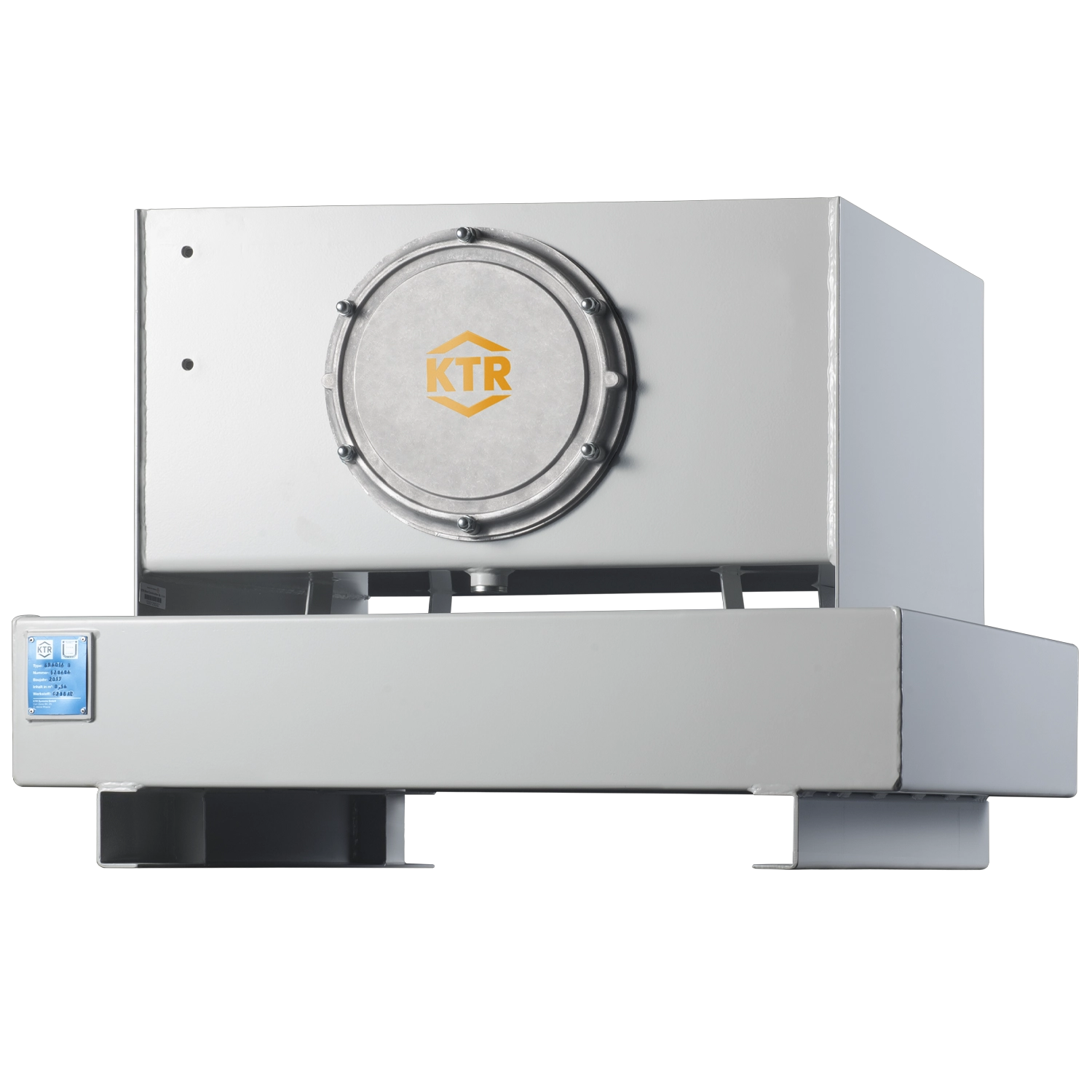

Available with or without foot
The collection volume corresponds to the effective volume of the tank.
The oil sump pans correspond to the specifications of WHG (water resources act).
Available in short term
Find 2D CAD drawings for download here.You need 3D drawings instead? Then please visit our 3D CAD library.
Sizes Ø250 - Ø580 mm / Aluminium cleaning cover acc. to DIN 24339
Lengths 76, 127 und 254 mm / For visual monitoring of the level
