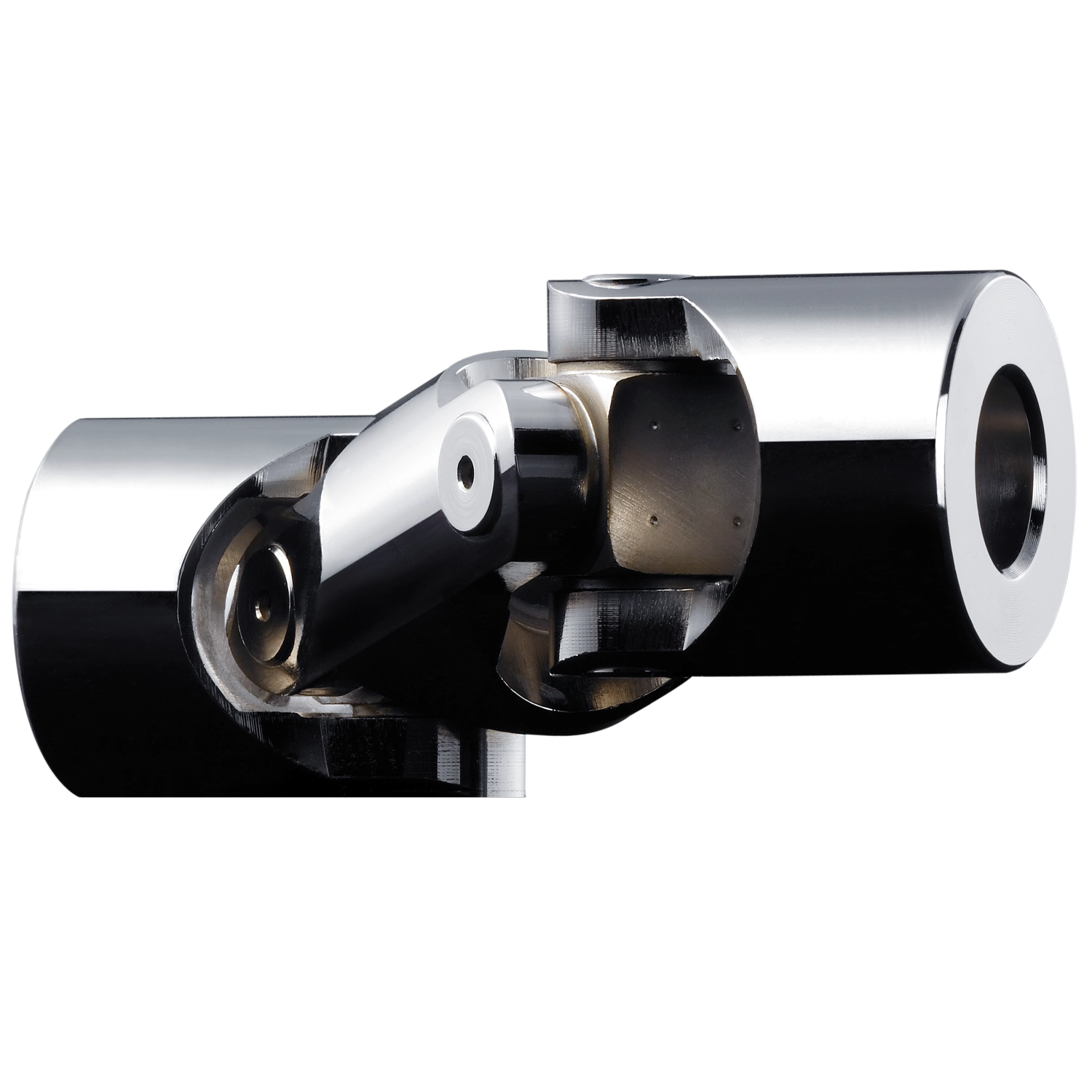

Precision joint X/XD

Maximum permissible speed 300 rpm / Precision joint made of stainless steel

Bearing of the joint heads is made by plain bearings with joints type X and XD limiting the maximum permissible speed to 300 rpm. The maximum diffraction angle per joint is 45°.

The precision joints type X and XD are made of stainless steel and thus corrosion-resistant. Precision joints in an extendable version are able to offset axial displacement in addition to angular and radial displacement.

Features

  • Cardan shaft / precision joint acc. to DIN 808

  • Type X: Precision single joint with plain bearing

  • Type XD: Precision double joint with plain bearing

  • max. speed = 300 rpm

  • max. diffraction angle = 45° per joint
